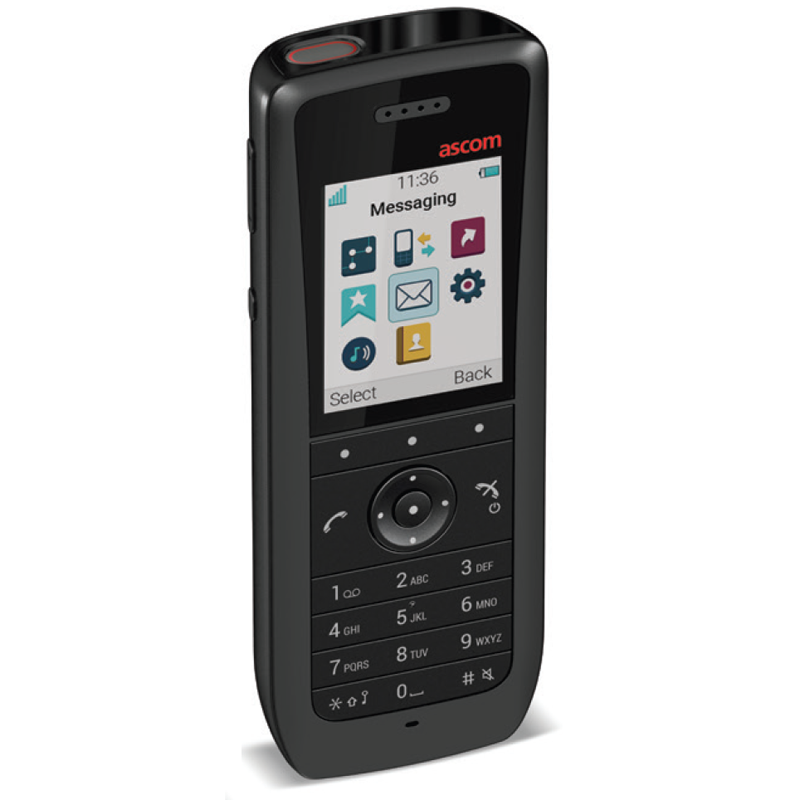

Ascom D63 Talker (DH7-AAAA), беспроводная DECT трубка

Physical

• Dimensions: 137 x 52 x 21.5 mm
• Weight: (incl. battery & clip) 113g
• Display: 31 x 41 (2,0 inch) TFT
• Colour:
  - Black: Talker, Messenger, Protector
  - White: Messenger only.

User Interface

• High resolution, Colour TFT display 262K individual colours. 240 × 320 pixel backlit LCD
• Indicator: Sound indicates incoming call/message
• Vibration: Incoming call/message
• Buttons & Keys: 3 soft keys, 5-way navigation key, off-hook key, on-hook and power on/off on the same key, numerical keys, sound off key, volume up/down, alarm/ multifunction button, mute button.

Languages

• 18 languages: Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese (Brazilian), Russian, Slovakian, Spanish, Swedish and Turkish + 1 downloadable.

Radio

• DECT protocol detection: Automatic detection and configuration for US DECT and EU DECT at initial registration
• Frequency range: EU (1880-1900 MHz), US (1920-1930 MHz), L A (1910-1930 MHz), BR (1910-1920 MHz), Other (1900-1920 MHz)
• Modulation: GFSK
• Channel spacing: 1.728 MHz
• Antenna: Integral
• Sensitivity: –93 dBm
• Radiated power: EU 250 mW, US 100 mW

Connectors

• Multi-purpose connector for battery charging, software download and configuration
• Standard 3.5 mm headset connector

Audio

• Ring signal: Adjustable in 8 steps
• Earpiece: Adjustable in 8 steps of 3dB each
• Max. sound ring signal level: 88 dBA @ 10 cm
• Loudspeaker: DSP assisted duplex loudspeaker.

Telephony

• Indication: 15 pre-set ring signals + 10 customisable, vibration
• Answer call: Button press or auto answer
• Call list storage capacity: 25 received, dialed and missed calls, with time stamp
• Emergency numbers: Up to 5 configurable, no need to unlock keypad before dialing

Messaging

• Storage capacity: Up to 20,000 characters, 30 received/sent messages
• Messages from handset to handset 160 characters
• Beep depending on urgency and customisable beeps
• Pre-programmed messages (pre-set or personal)

Environmental

• Operating temperature: 0°C to +40°C
• Storage temperature1: -20°C to +60°C
• Enclosure protection: IP44, IEC EN60529
• Immunity to electromagnetic fields: 3V/m EN61000-4-3
• Immunity to ESD: 4 kV contact discharge, 8 kV air discharge (EN61000-4-2)
• Free fall test, standard product: IEC 60068-2-32, procedure 1, dropped 12 times from 1 meter. Ascom approves 12 drops from 1.5 meters

Compliance

• Compliance to EU, US, Canadian and Australian standards – please see the data sheet

Phonebook

• Central phonebook: unlimited no. of entries
• Company phonebook: 1000 entries
• Local phonebook: 250 entries. Selectable ring tones per contact.

Security and Encryption

• Full support of the DECT Security EN300 444 feature N35, as specified by the DECT forum

Bluetooth

• Supports handsfree profiles. See data sheet for tested headsets

Battery

• Type: Li-polymer
• Speech time: 20 hrs
• Stand-by time: 240 hrs without activated screensaver
• Charge time: < 4 hrs
• Discharge/charge cycles: >=80% capacity left after 400 full charge/discharge cycles

Location

• DECT location and Infra Red (IR) location.
